上海福山唐城外国语小学（培德校区）设计

华建集团上海建筑设计研究院

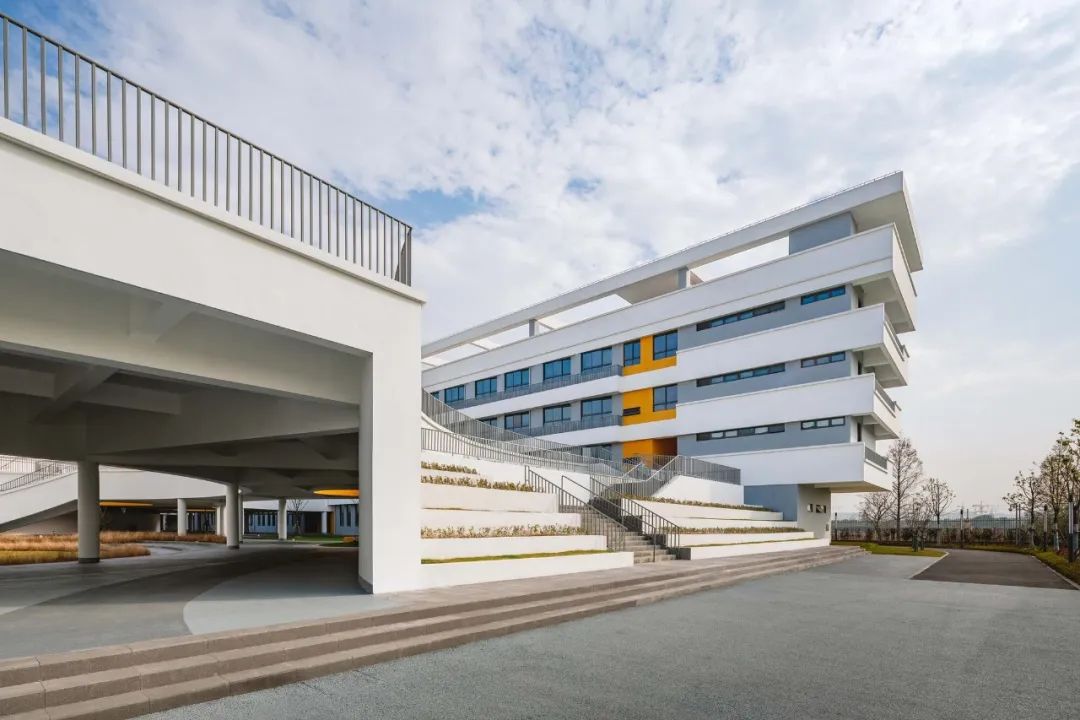

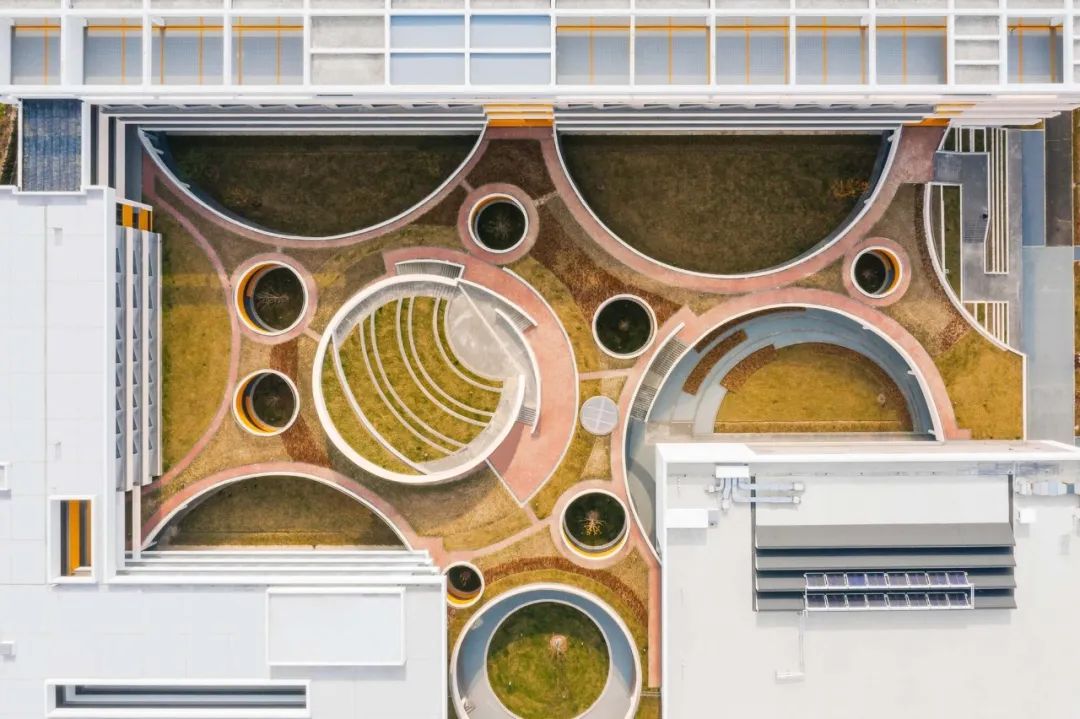

小学设计 | 示范样板:40班规模,半围合式校园布局,极简现代的立面第1张

▲ © 林松

我们的设计师团队大多为学龄儿童的父母，从设计的开始，大家就将这个学校的设计视为一个珍贵的机遇，在设计中更多的聚焦孩子的心理感受，关注孩子们的体验，去打造更自由、更符合孩子们天性的空间。

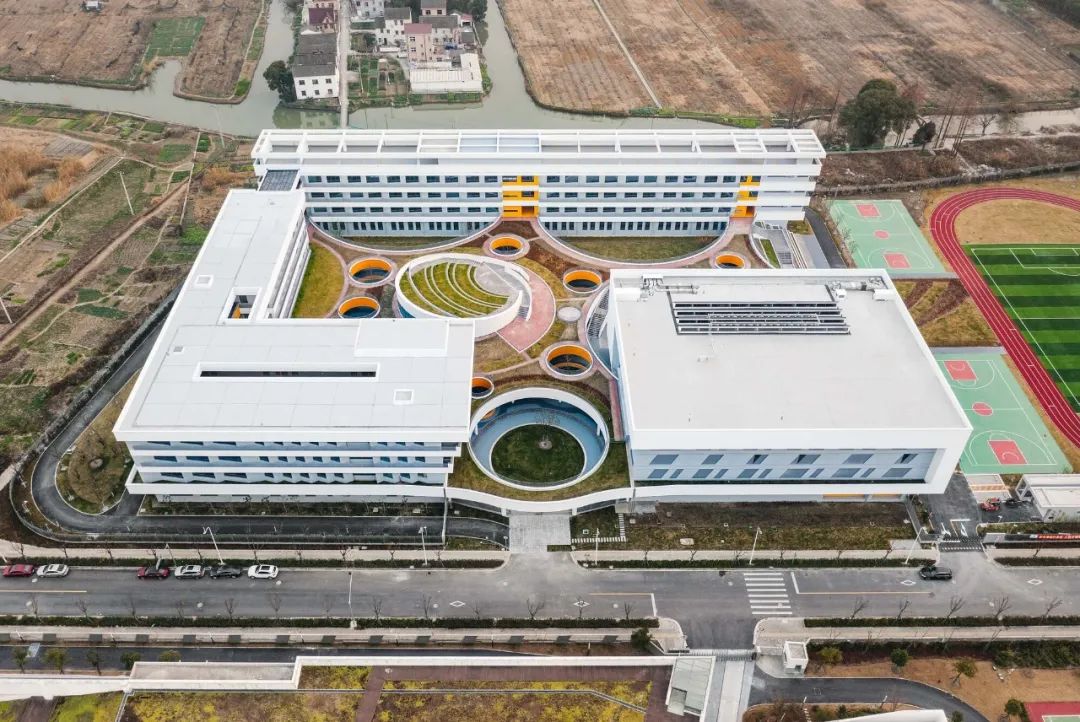

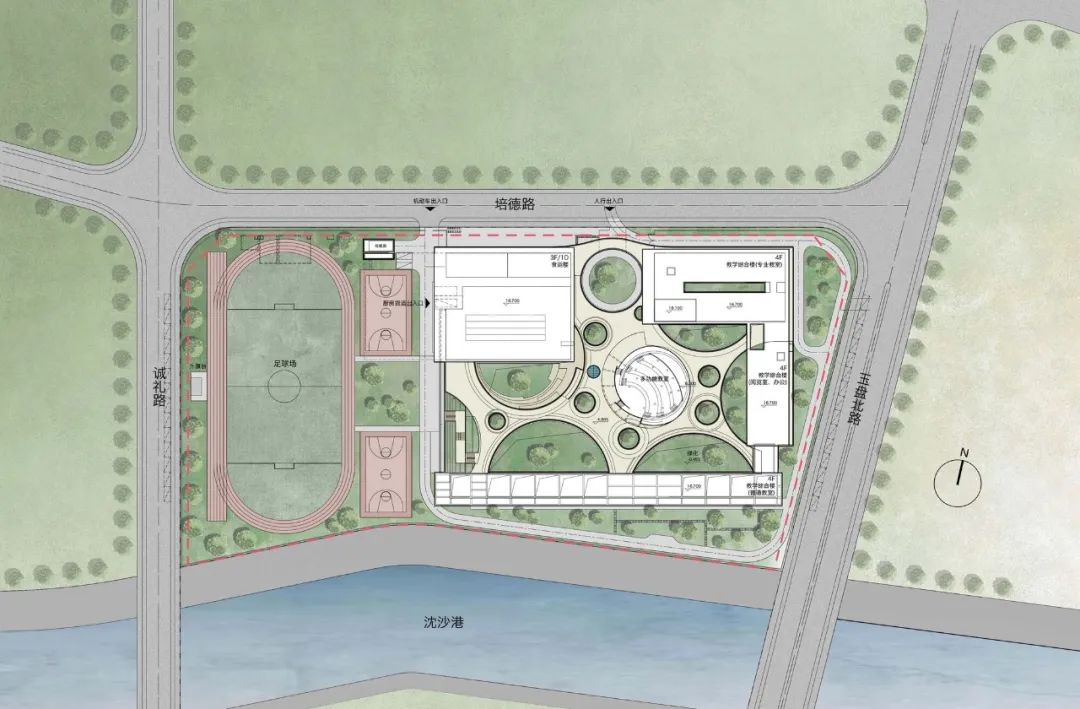

上海福山唐城外国语小学位于浦东新区玉盘北路、培德路路口。项目规模为 40 班小学，地上四层，地下一层。总建筑面积为 2.3 万㎡。设计梳理归纳了教学与辅助空间，将食运楼、教学楼和办公楼环绕出一个巨大的共享空间，形成半围合式校园。

Most of our designers are parents of school-age children. From the beginning of the design, we have regarded the design of this school as a precious opportunity. In the design, we focus more on children's psychological feelings, and pay attention to children's experiences, so as to create a more free and natural space for children. Shanghai Fushan Tangcheng Foreign Language Primary School is located at the intersection of Yupan North Road and Peide Road in Pudong New Area. The scale of the project is 40 classes of primary schools, with four floors above the ground and one floor underground. The total building area is 23,000 ㎡. The design arranged the teaching and auxiliary space and surrounded the food transportation building, teaching building, and office building into a huge shared space, forming a semi-opened campus.

小学设计 | 示范样板:40班规模,半围合式校园布局,极简现代的立面第2张

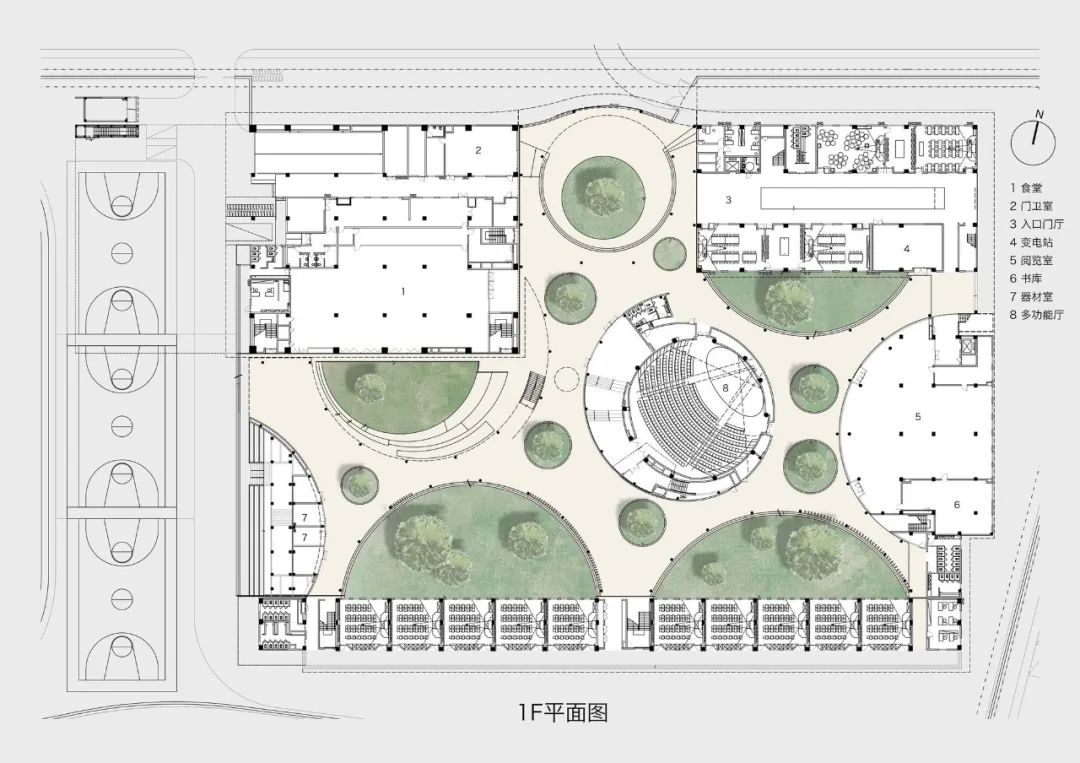

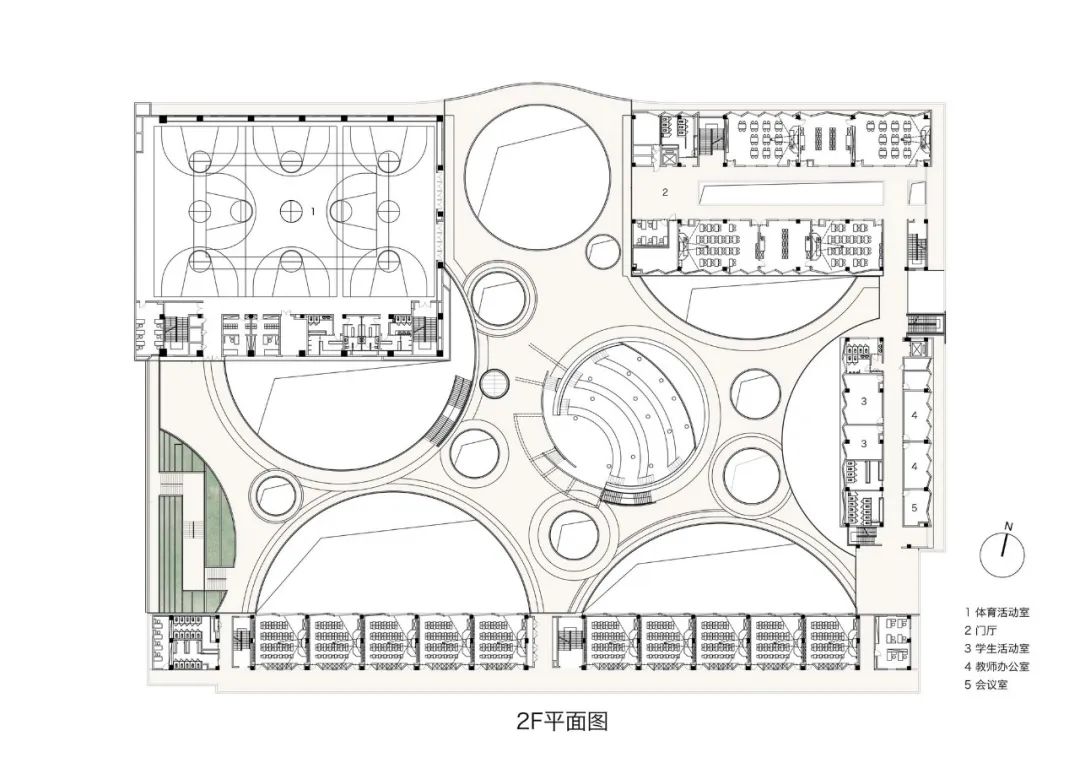

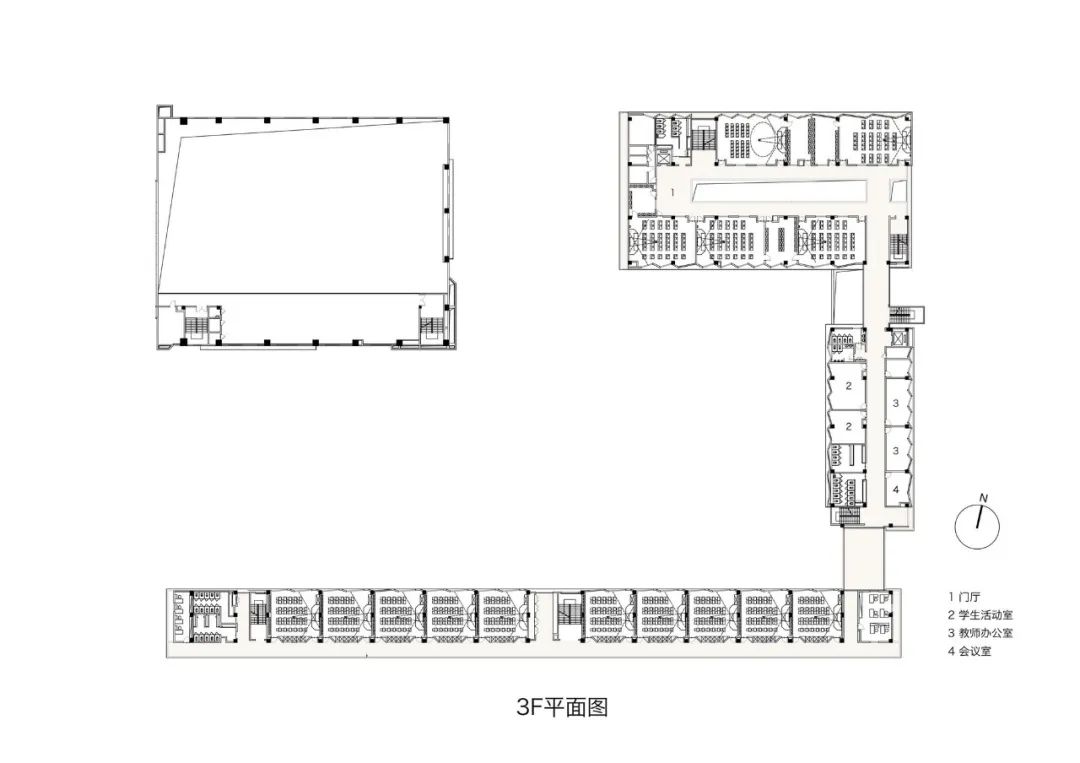

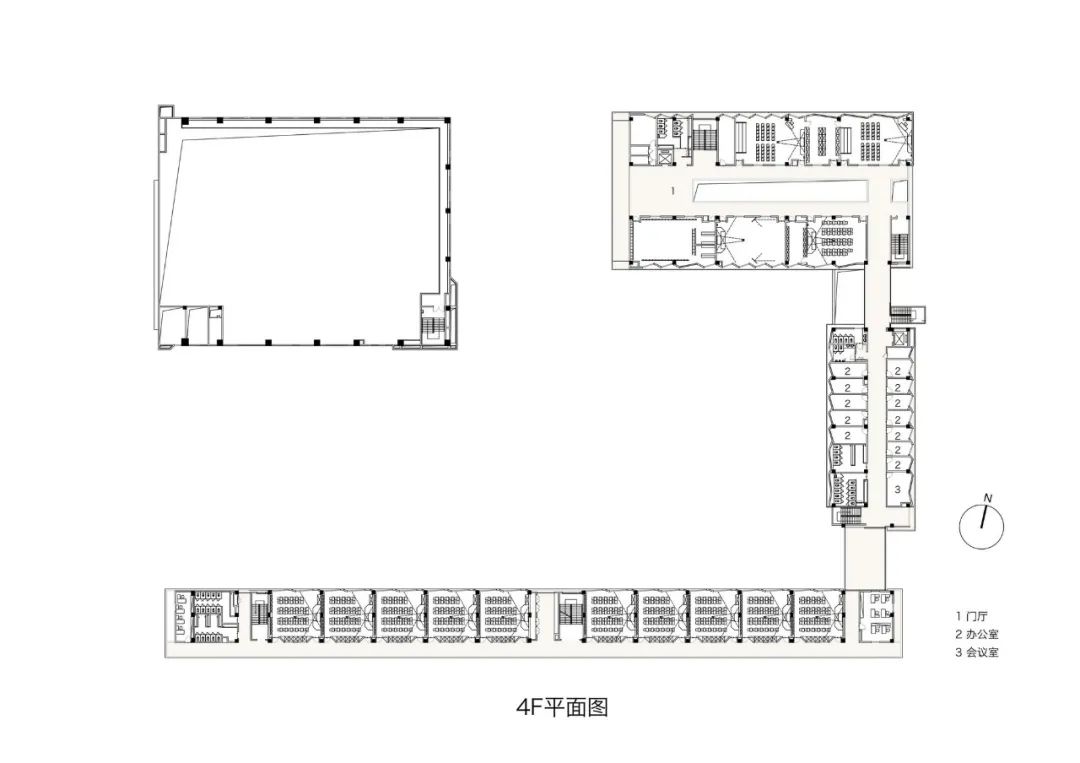

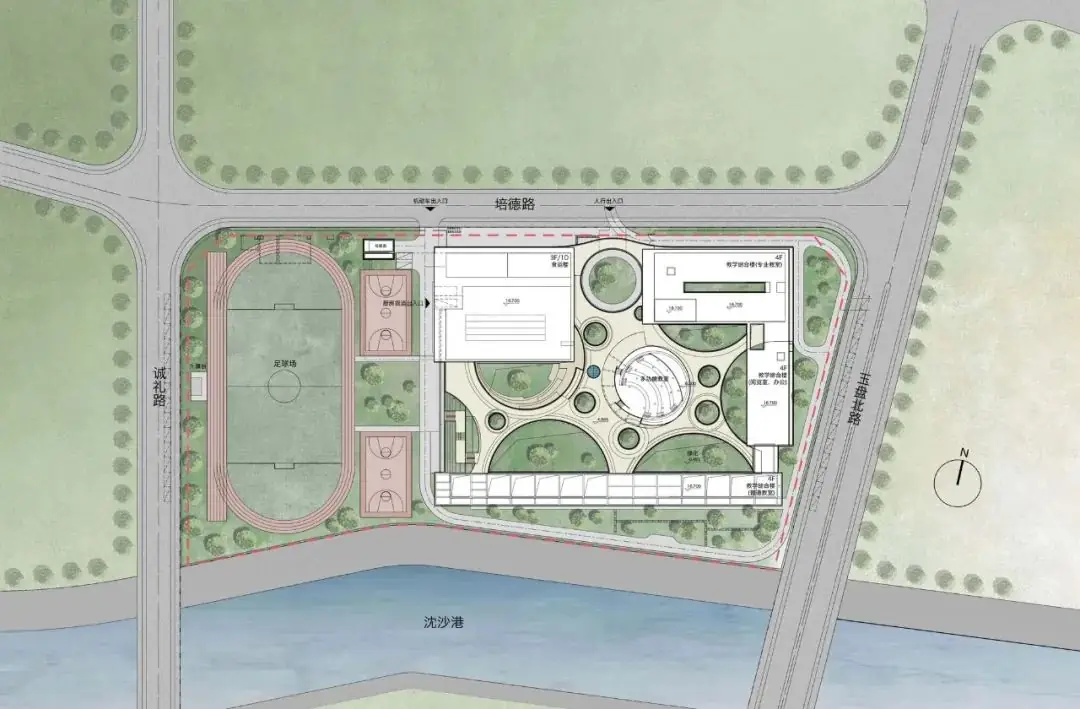

▲ 平面布局

小学设计 | 示范样板:40班规模,半围合式校园布局,极简现代的立面第3张

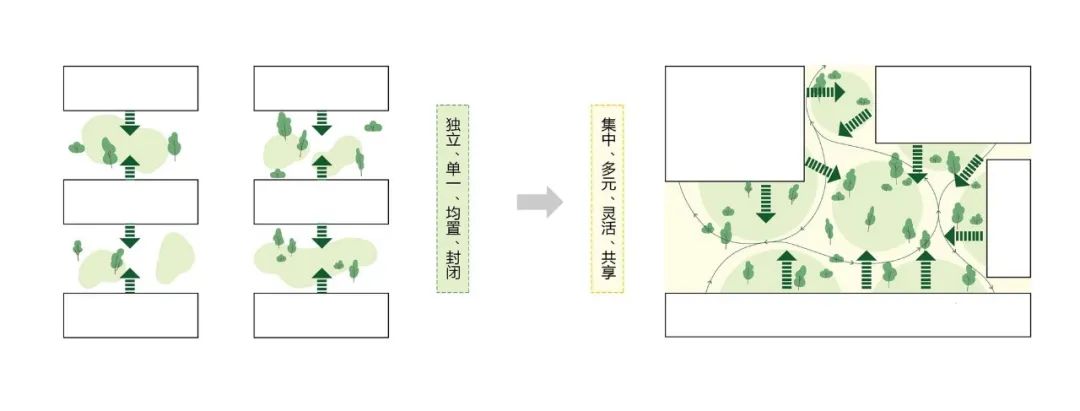

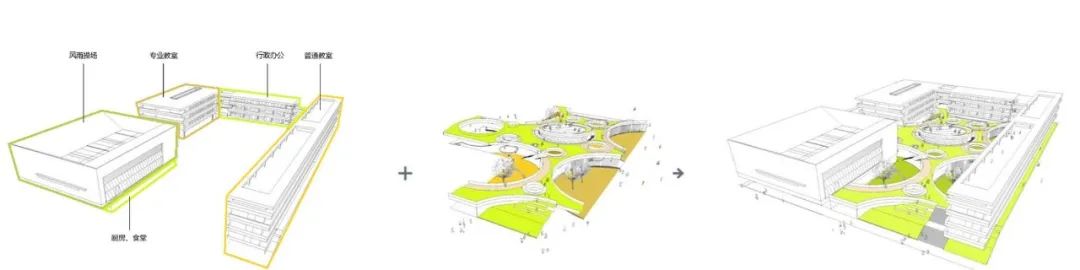

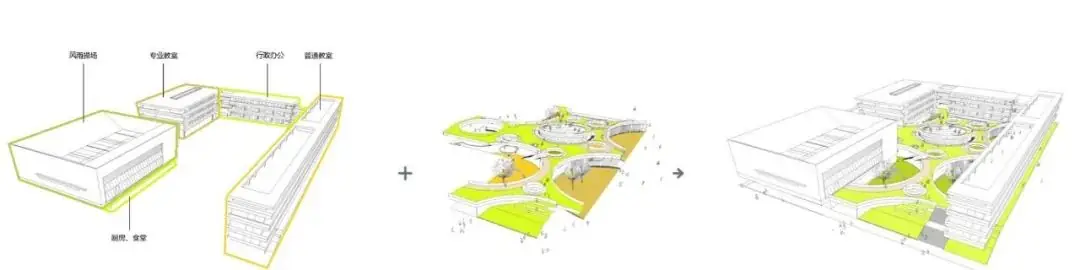

▲ 形态生成

复合公共空间

小学生年龄从 6 岁到 11 岁，5 年的儿童心理变化是巨大的，1-3 年纪孩子们从家走向校园，需要安全的舒适的空间。而高年级的学生希望能有更多的社交、公共的集体活动。他们需要的空间有很大的不同。

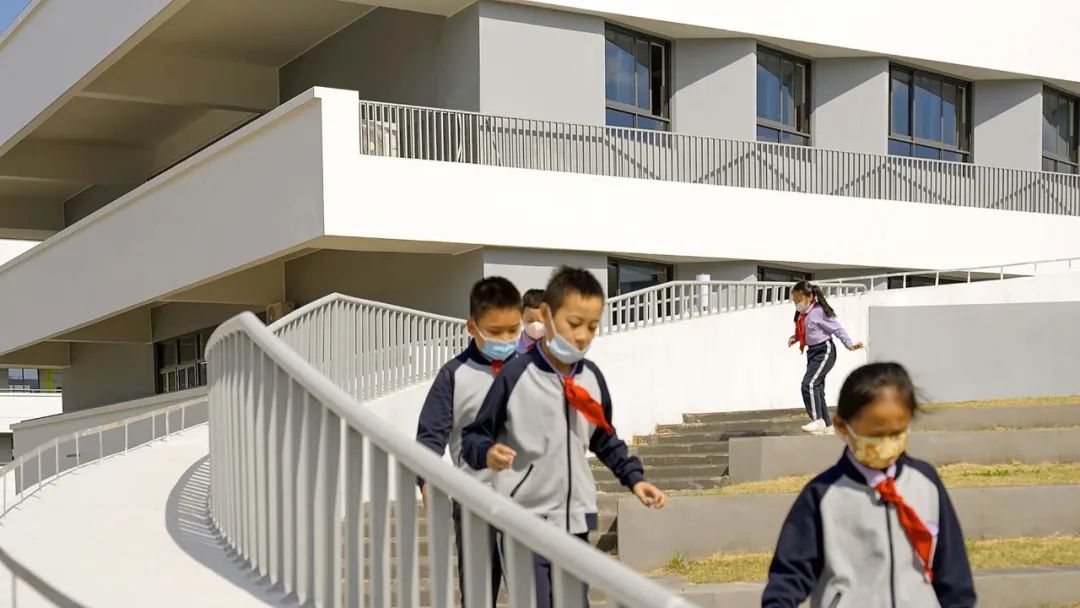

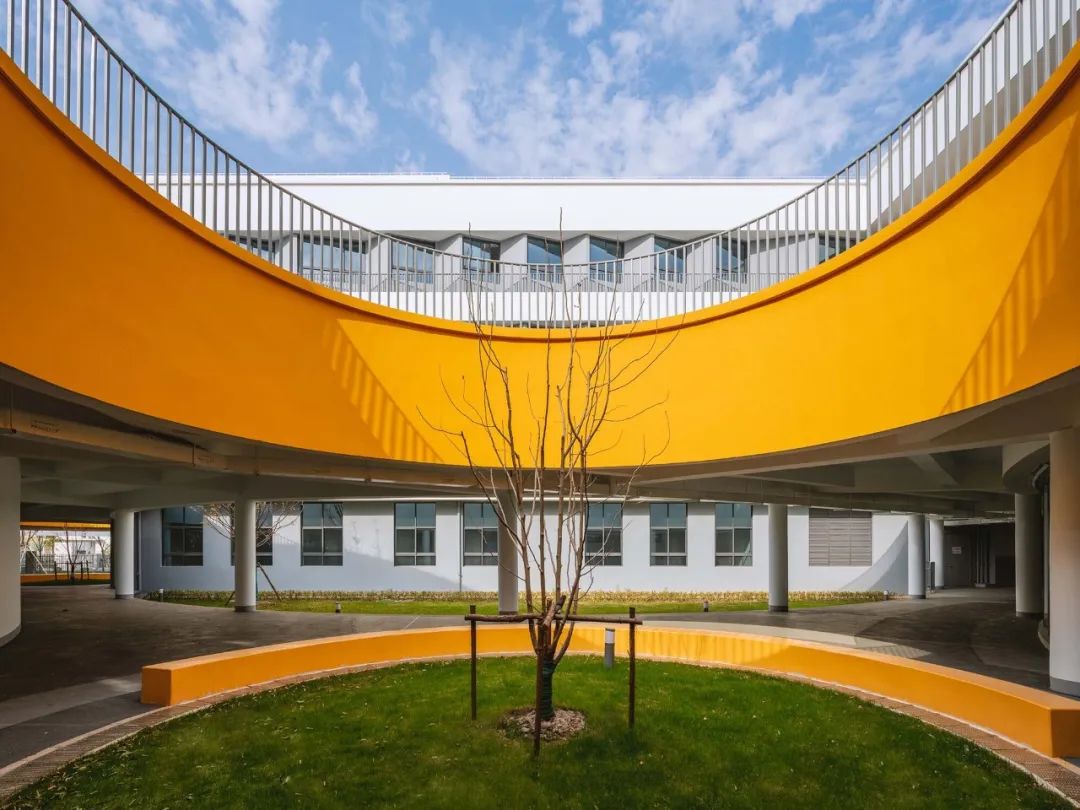

小学设计 | 示范样板:40班规模,半围合式校园布局,极简现代的立面第4张

▲ © 林松

小学设计 | 示范样板:40班规模,半围合式校园布局,极简现代的立面第5张

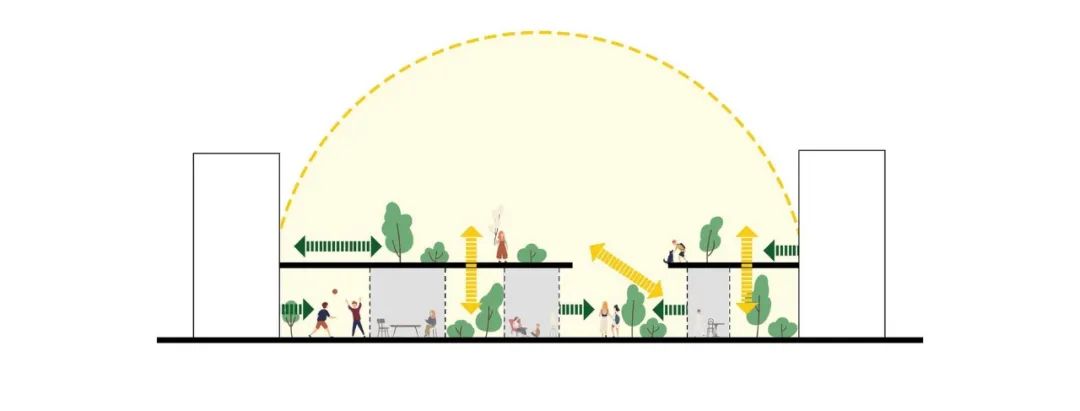

▲ 复合空间

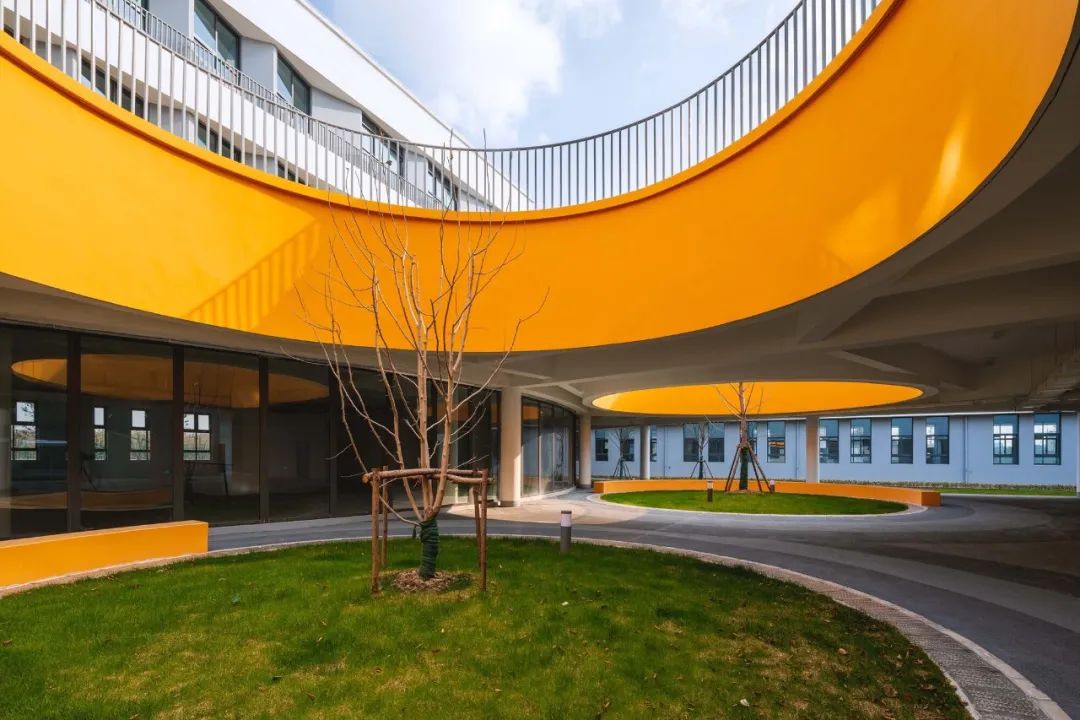

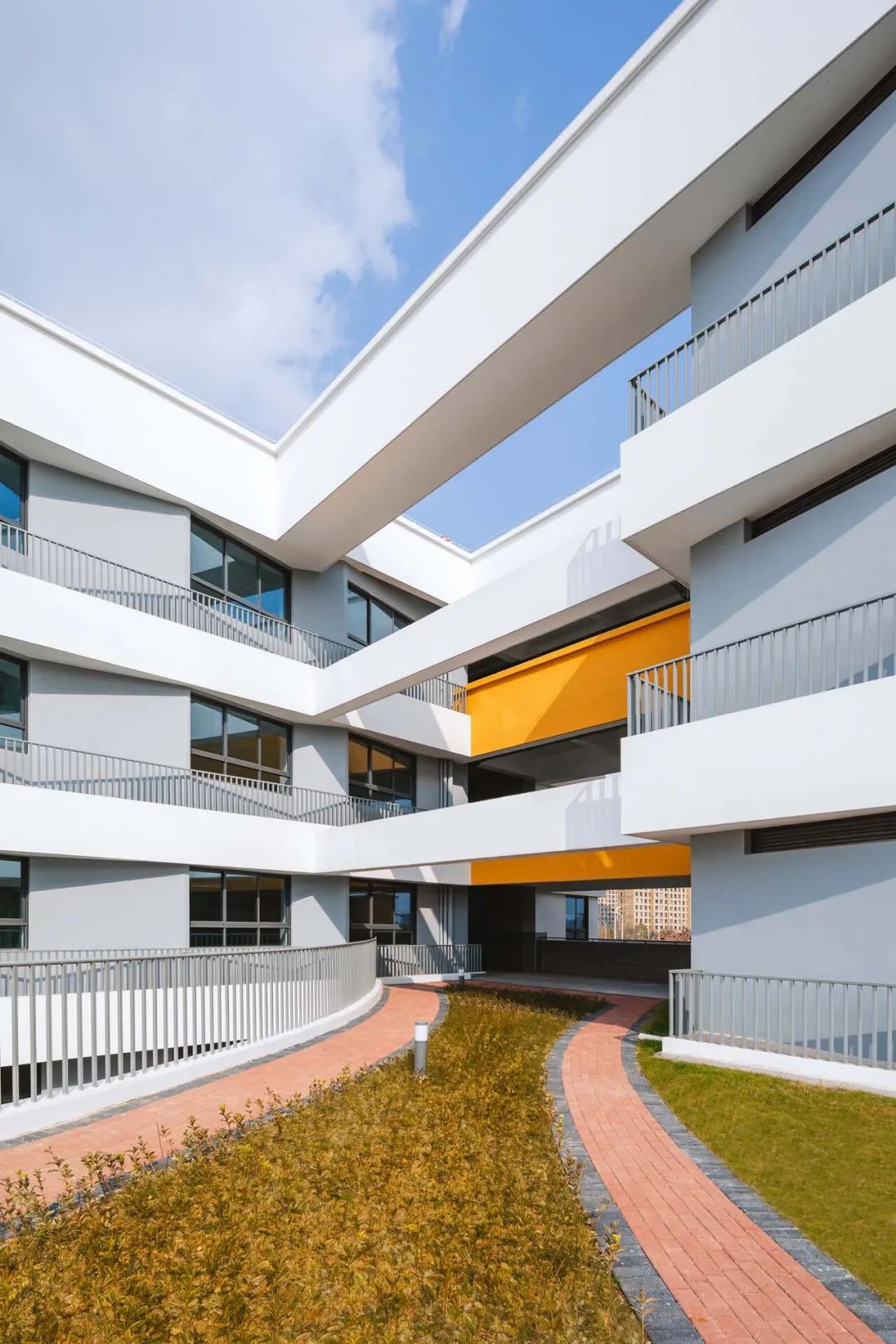

我们创造了中部复合公共空间，上下两层是紧密联系、可以互相转换的，多个绿化天井和室内外楼梯将上、下层的公共空间产生沟通，形成了一个尺度丰富的场所。复合空间的下层我们希望能承载童心。推敲空间的高度、顶部开洞的半径，确保了日光的覆盖率，这里是孩子（特别是低年级孩子）有安全感的半室内空间。

二层是一个开敞的露天公共场所，是以绿化空间为主的屋顶花园，相对活跃连续的室外空间会带给学生更为开朗的情感感受，在这里可以感知并拥抱季节和气候的变化。不同年龄段的孩子们都能在校园中能找到自己心灵的港湾。

Compound Public Space - The age of primary school students is from 6 to 11 years old. The psychological changes in children in five years are huge. Children aged 1-3 who go to school from home need safe and comfortable spaces. Nevertheless, the senior students hope to have more social and public collective activities. The space they need is very different. We have created a compound public space in the middle. The upper and lower floors are closely connected and can be transformed. A number of green patios and stairs connect the upper and lower public spaces, forming a place with rich scales. We hope that the lower layer of the compound space can bear childlike innocence. The height of the space and the radius of the hole on the top ensure the coverage of sunlight. This is a half-indoor space where children (especially junior children) have a sense of security. The second floor is an open outdoor public place, which is a roof garden dominated by green space. The relatively active and continuous outdoor space will bring students a more cheerful emotional feeling, where they can feel and embrace the changes in seasons and climate. Children of different ages can find their own spiritual harbor on campus.

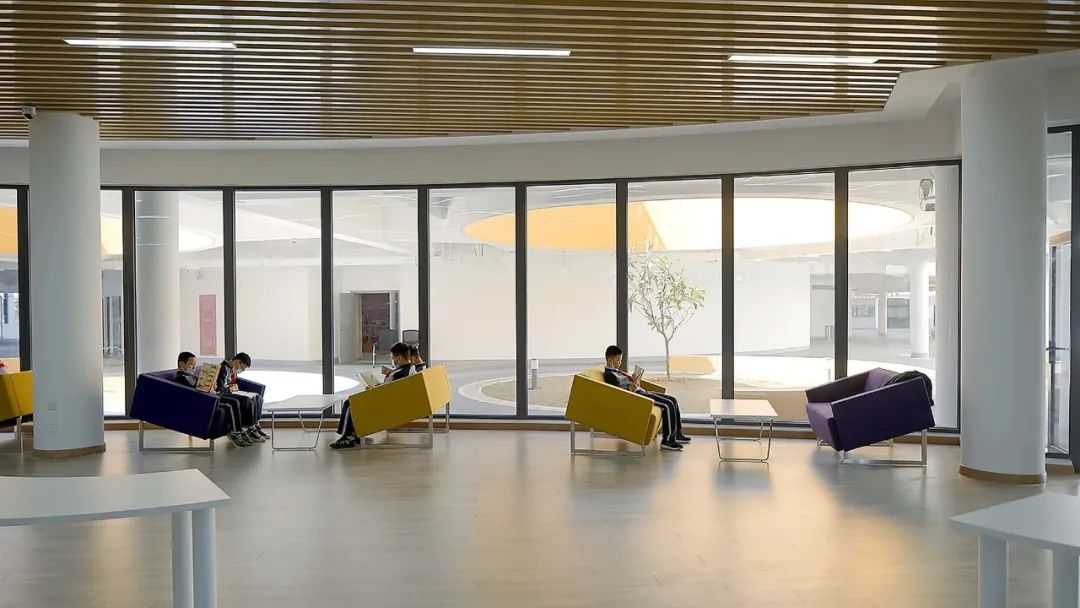

小学设计 | 示范样板:40班规模,半围合式校园布局,极简现代的立面第6张

▲ © 林松

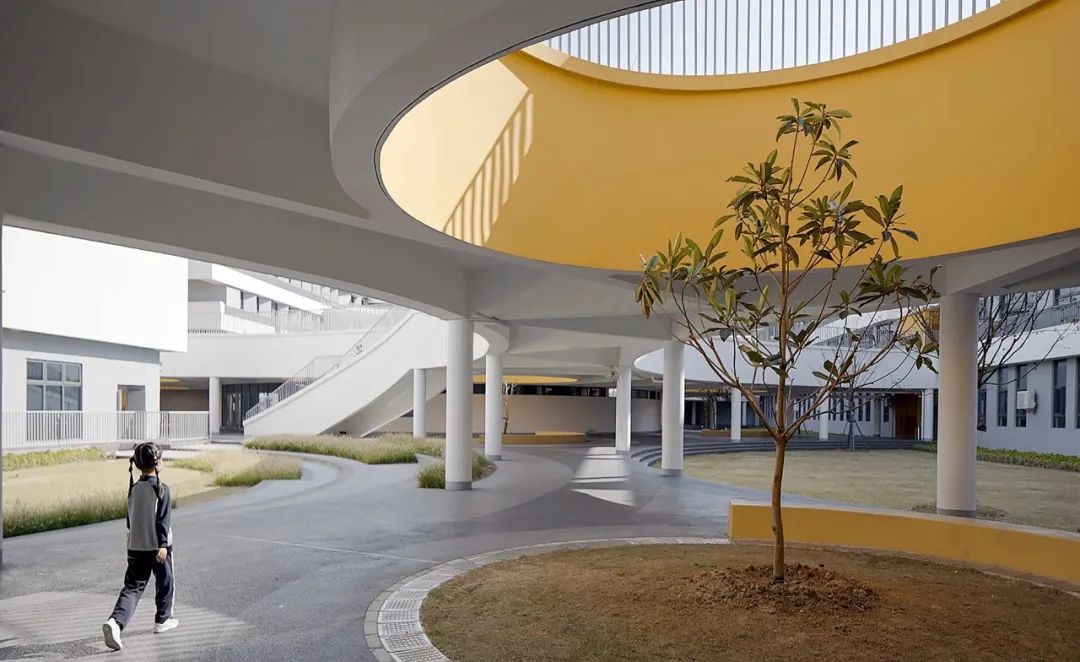

小学设计 | 示范样板:40班规模,半围合式校园布局,极简现代的立面第7张

▲ © 林松

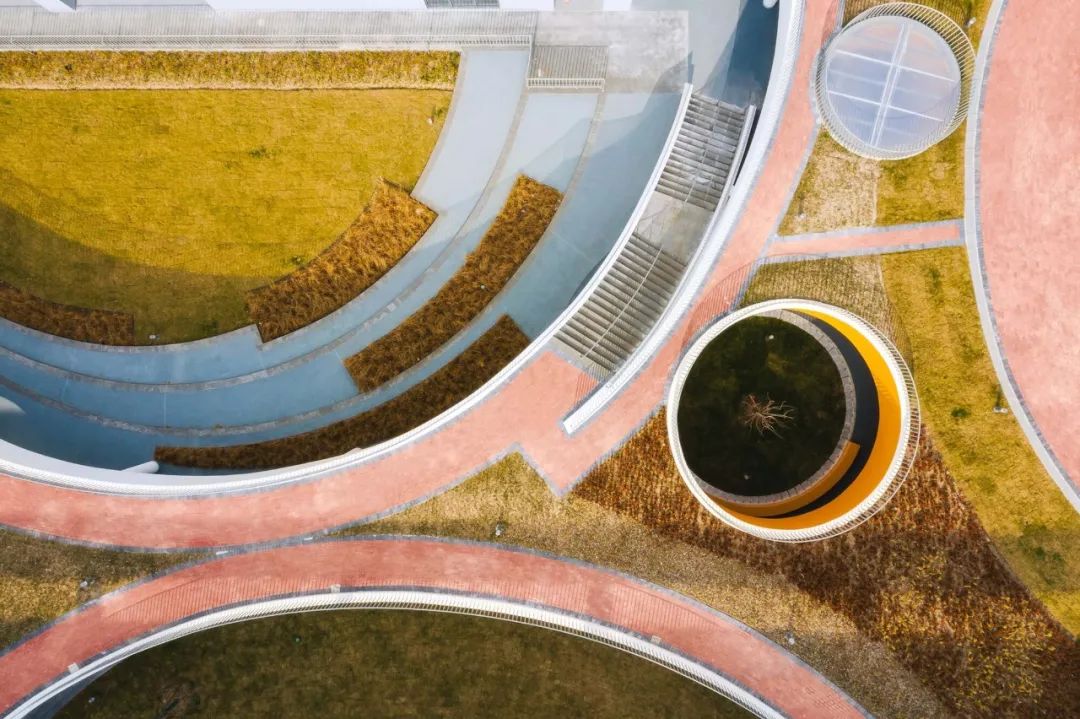

小学设计 | 示范样板:40班规模,半围合式校园布局,极简现代的立面第8张

▲ © 林松

在校园的回访中，老师告诉我们中部这个复合空间非常好用，模糊的功能和灵活的空间给学生和老师的使用留下了很多的想象力，他们把这些空间活化为社交平台、时尚街区、阅读讨论、户外剧场、观景平台。课间十分钟我们可以看到很多孩子在一层架空的空间里运动和玩耍。

只要给孩子们一个遮风避雨的地方，他们会自发组织各种各样丰富的活动。阳光下的大平台上也是奔跑嬉戏的孩子们，她们对于运动场专业性的要求并不高，需要的正是大量的这种非正式的、能够激发更多人来参与的趣味性空间。

On the return visit to the campus, the teacher told us that the compound space in the middle is very useful. The vague function and flexible space left a lot of imagination for students and teachers to use. They activated these spaces into social platforms, fashion blocks, reading discussions, outdoor theaters, and viewing platforms. Ten minutes between classes, we can see many children playing and playing in the overhead space on the first floor. As long as children are given shelter, they will spontaneously organize various activities. Children also run and play on the big platform under the sun. They do not have high requirements for the professionalism of the playground. What they need is a large number of such informal and interesting spaces that can stimulate more people to participate.

小学设计 | 示范样板:40班规模,半围合式校园布局,极简现代的立面第9张

▲ © 林松

小学设计 | 示范样板:40班规模,半围合式校园布局,极简现代的立面第10张

▲ © 林松

建筑立面

学校立面设计采用非常简单的大块面构成风格，就像小学生的涂鸦，简洁抽象。全涂料的立面材质，给人质朴的美感和温暖、安全的感受。

Building Façade - The facade design of the school adopts a very simple style of large faces, just like the graffiti of primary school students, which is simple and abstract. The fully coated facade material gives the hostages a sense of beauty, warmth, and security.

小学设计 | 示范样板:40班规模,半围合式校园布局,极简现代的立面第11张

▲ © 三千影像

小学设计 | 示范样板:40班规模,半围合式校园布局,极简现代的立面第12张

▲ © 林松

小学设计 | 示范样板:40班规模,半围合式校园布局,极简现代的立面第13张

▲ © 林松

可触摸的海绵城市

全校园采用海绵设计，雨水断接，雨水花园、下凹绿地和透水地面，这些设计不仅考虑学生的安全，还和孩子们的活动需求结合在一起，是最好的可持续设计的启蒙教育。本项目也入选了2021年度上海市海绵城市建设示范样板工程。

Touchable Sponge City - The whole campus adopts a sponged design, rainwater disconnection, rainwater garden, sunken green space, and pervious ground. These designs not only consider the safety of students but also combine with children's activity needs, which is the best enlightenment education of sustainable design. This project has also been selected as the sponge city demonstration project of Shanghai architecture and community in 2021.

小学设计 | 示范样板:40班规模,半围合式校园布局,极简现代的立面第14张

▲ © 林松

小学设计 | 示范样板:40班规模,半围合式校园布局,极简现代的立面第15张

▲ © 三千影像

希望孩子们在我们精心设计的有趣的建筑空间里无尽的讨论、自由的想象，快乐的创造——设计正在改变教育的未来，教育的未来也正在被设计所塑造。

We hope that children can have endless discussions, free imagination, and happy creation in our carefully designed and interesting architectural space - design is changing the future of education, and the future of education is also being shaped by design.
