高中数学试卷LaTeX模板
基于latex制作的一份适合平时考试,测验用的数学试卷模板。
latex优点:
1. 可以快速通过文字识别模型,不到1分钟就能排版美观,可编辑。
2. 本模板支持:答案隐藏/显示(快速编辑做题版与解析版) ,其实这并不很难实现,网络上大部分模板都支持。但是有一点小小的细节在于:
     选择题和填空题隐藏答案时不会显示答案区域大小的空白,而简答题可以!!
3.根据选择内容多少,自动调整选择题选项排列,无需手动,这一点很多模板不支持,但是网上也有教程。
缺点:复杂立体几何绘图对于新手较难。幸运的是,可以借助ai实现图片变清晰,直接通过figure环境插图
后续计划:精致的练习题模板与讲义模板等等
更好的建议欢迎在留言区交流!!!
下面详细这款介绍用最简洁的导言区以及简洁的题目环境编译出的试卷效果
导言区
\documentclass[noshowanswers,             % 显示答案(默认)answercolor=red,          % 答案颜色(默认 red)numbercolor=purple,      % 题号颜色(默认 blue)paper=a4,                 %纸张大小,A4,A3可选juemi,                    %左上角绝密zhuyishixiang            %试卷的注意事项]{biscuits}              %biscuits.cls%以上就是最简单的导言区了
Document:插入所需的试卷
\begin{document}% ========== 标题 ==========\title{ 一份适合高中数学题目排版的\LaTeX}\author{Biscuits}\date{2025.8}\maketitle\tableofcontents\newpage\chapter{全国卷}\input{E:/LaTeXVScode/试卷/真题/2025/全国1卷/2025全国1卷.tex}	\input{E:/LaTeXVScode/试卷/真题/2025/全国2卷/2025全国2卷.tex}\input{E:/LaTeXVScode/试卷/真题/2024/全国1卷/全国1卷.tex}	\input{E:/LaTeXVScode/试卷/真题/2024/全国2卷/全国2卷.tex}\end{document}
以下面的.tex文件为例:
2025全国2卷.tex

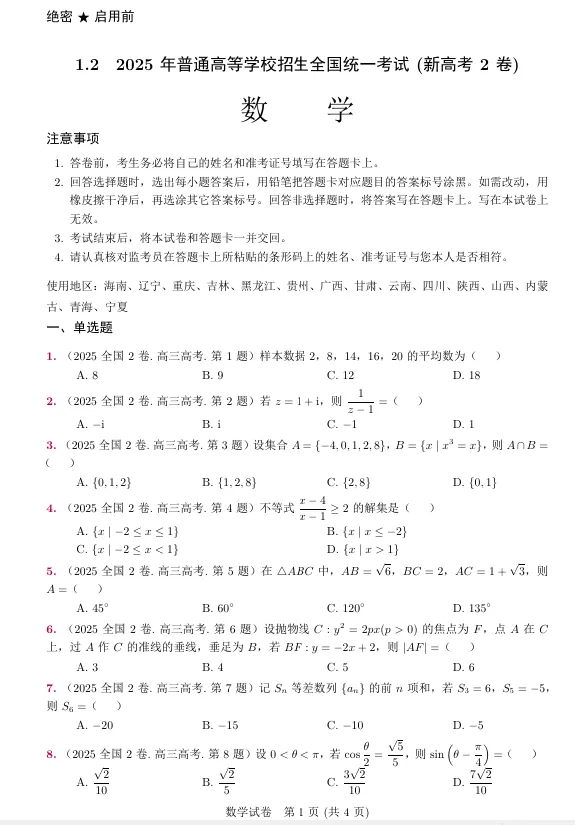

A4预览效果:
高中数学试卷LaTeX模板 第1张

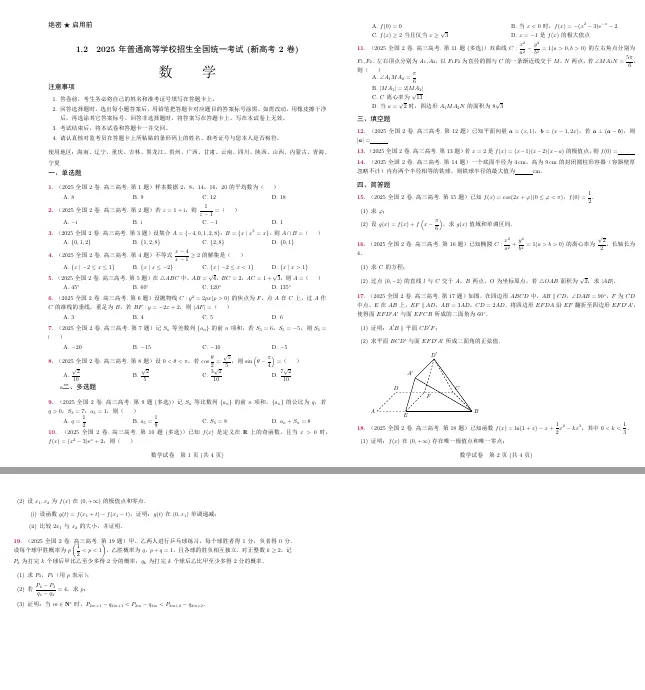

A3预览效果:
高中数学试卷LaTeX模板 第2张
内置代码说明:
\begin{example}{1}[年份][地区][年级][类型][第x题]%{1}{2}{3}{4},分别代表单选题,多选题,填空题,简答题,便于后续分类

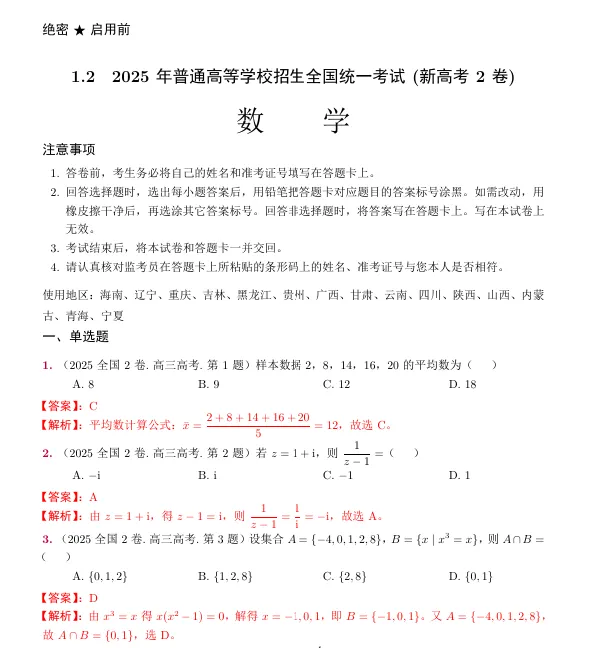

解析版:
高中数学试卷LaTeX模板 第3张
里面的所有代码结构如下:
\section{2025年普通高等学校招生全国统一考试(新高考2卷)}使用地区:海南、辽宁、重庆、吉林、黑龙江、贵州、广西、甘肃、云南、四川、陕西、山西、内蒙古、青海、宁夏\\\parttitle{单选题}\begin{example}{1}[2025][全国2卷][高三][高考][第1题]样本数据28141620的平均数为\blankbox\begin{choices}\choice{$8$}\choice{$9$}\choice{$12$}\choice{$18$}\end{choices}\begin{proof}	\begin{answer}		C	\end{answer}	\begin{solutions}		平均数计算公式:$\bar{x}=\dfrac{2+8+14+16+20}{5}=12$,故选C。	\end{solutions}\end{proof}\end{example}\begin{example}{1}[2025][全国2卷][高三][高考][第2题]$z=1+\text{i}$,则$\dfrac{1}{z-1}=$\blankbox\begin{choices}\choice{$-\text{i}$}\choice{$\text{i}$}\choice{$-1$}\choice{$1$}\end{choices}\begin{proof}	\begin{answer}		A	\end{answer}	\begin{solutions}$z=1+\text{i}$,得$z-1=\text{i}$,则$\dfrac{1}{z-1}=\dfrac{1}{\text{i}}=-\text{i}$,故选A。	\end{solutions}\end{proof}\end{example}\begin{example}{1}[2025][全国2卷][高三][高考][第3题]设集合$A=\{-4,0,1,2,8\}$$B=\{x\mid x^3=x\}$,则$A\cap B=$\blankbox\begin{choices}\choice{$\{0,1,2\}$}\choice{$\{1,2,8\}$}\choice{$\{2,8\}$}\choice{$\{0,1\}$}\end{choices}\begin{proof}	\begin{answer}		D	\end{answer}	\begin{solutions}$x^3=x$$x(x^2-1)=0$,解得$x=-1,0,1$,即$B=\{-1,0,1\}$$A=\{-4,0,1,2,8\}$,故$A\cap B=\{0,1\}$,选D。	\end{solutions}\end{proof}\end{example}\begin{example}{1}[2025][全国2卷][高三][高考][第5题]$\triangle ABC$中,$AB=\sqrt{6}$$BC=2$$AC=1+\sqrt{3}$,则$A=$\blankbox\begin{choices}\choice{$45^\circ$}\choice{$60^\circ$}\choice{$120^\circ$}\choice{$135^\circ$}\end{choices}\end{example}\begin{example}{1}[2025][全国2卷][高三][高考][第6题]设抛物线$C:y^2=2px(p>0)$的焦点为$F$,点$A$$C$上,过$A$$C$的准线的垂线,垂足为$B$,若$BF:y=-2x+2$,则$|AF|=$\blankbox\begin{choices}\choice{$3$}\choice{$4$}\choice{$5$}\choice{$6$}\end{choices}\end{example}\begin{example}{1}[2025][全国2卷][高三][高考][第7题]$S_n$等差数列$\{a_n\}$的前$n$项和,若$S_3=6$$S_5=-5$,则$S_6=$\blankbox\begin{choices}\choice{$-20$}\choice{$-15$}\choice{$-10$}\choice{$-5$}\end{choices}\end{example}\begin{example}{1}[2025][全国2卷][高三][高考][第8题]$0<\theta<\pi$,若$\cos\dfrac{\theta}{2}=\dfrac{\sqrt{5}}{5}$,则$\sin\left(\theta-\dfrac{\pi}{4}\right)=$\blankbox\begin{choices}\choice{$\dfrac{\sqrt{2}}{10}$}\choice{$\dfrac{\sqrt{2}}{5}$}\choice{$\dfrac{3\sqrt{2}}{10}$}\choice{$\dfrac{7\sqrt{2}}{10}$}\end{choices}\end{example}a\parttitle{多选题}\begin{example}{2}[2025][全国2卷][高三][高考][第9题][多选]$S_n$等比数列$\{a_n\}$的前$n$项和,$\{a_n\}$的公比为$q$,若$q>0$$S_3=7$$a_3=1$,则\blankbox\begin{choices}\choice{$q=\dfrac{1}{2}$}\choice{$a_5=\dfrac{1}{9}$}\choice{$S_5=8$}\choice{$a_n+S_n=8$}\end{choices}\end{example}\begin{example}{2}[2025][全国2卷][高三][高考][第10题][多选]已知$f(x)$是定义在$\mathbf{R}$上的奇函数,且当$x>0$时,$f(x)=(x^2-3)\text{e}^x+2$,则\blankbox\begin{choices}\choice{$f(0)=0$}\choice{当$x<0$时,$f(x)=-(x^2-3)\text{e}^{-x}-2$}\choice{$f(x)\ge 2$当且仅当$x\ge \sqrt{3}$}\choice{$x=-1$$f(x)$的极大值点}\end{choices}\end{example}\begin{example}{2}[2025][全国2卷][高三][高考][第11题][多选]双曲线$C:\dfrac{x^2}{a^2}-\dfrac{y^2}{b^2}=1(a>0,b>0)$的左右焦点分别为$F_1,F_2$.左右顶点分别为$A_1,A_2$,以$F_1F_2$为直径的圆与$C$的一条渐近线交于$M$$N$两点,若$\angle MA_1N=\dfrac{5\pi}{6}$,则\blankbox\begin{choices}\choice{$\angle A_1MA_2=\dfrac{\pi}{6}$}\choice{$|MA_1|=2|MA_2|$}\choice{$C$离心率为$\sqrt{13}$}\choice{当$a=\sqrt{2}$时,四边形$A_1MA_2N$的面积为$8\sqrt{3}$}\end{choices}\end{example}\parttitle{填空题}\begin{example}{3}[2025][全国2卷][高三][高考][第12题]已知平面向量$\boldsymbol{a}=(x,1)$$\boldsymbol{b}=(x-1,2x)$,若$\boldsymbol{a}\perp(\boldsymbol{a}-\boldsymbol{b})$,则$|\boldsymbol{a}|=$\blankline\end{example}\begin{example}{3}[2025][全国2卷][高三][高考][第13题]$x=2$$f(x)=(x-1)(x-2)(x-a)$的极值点,则$f(0)=$\blankline\end{example}\begin{example}{3}[2025][全国2卷][高三][高考][第14题]一个底面半径为$4\,\text{cm}$,高为$9\,\text{cm}$的封闭圆柱形容器(容器壁厚忽略不计)内有两个半径相等的铁球,则铁球半径的最大值为\blankline$\text{cm}$\end{example}\parttitle{简答题}\begin{example}{4}[2025][全国2卷][高三][高考][第15题]已知$f(x)=\cos(2x+\varphi)(0\le \varphi<\pi)$$f(0)=\dfrac{1}{2}$\begin{enumerate}    \item 求$\varphi$    \item 设$g(x)=f(x)+f\left(x-\dfrac{\pi}{6}\right)$,求$g(x)$值域和单调区间.\end{enumerate}\end{example}\begin{example}{4}[2025][全国2卷][高三][高考][第16题]已知椭圆$C:\dfrac{x^2}{a^2}+\dfrac{y^2}{b^2}=1(a>b>0)$的离心率为$\dfrac{\sqrt{2}}{2}$,长轴长为$4$\begin{enumerate}    \item 求$C$的方程;    \item 过点$(0,-2)$的直线$l$$C$交于$A$$B$两点,$O$为坐标原点,若$\triangle OAB$面积为$\sqrt{2}$,求$|AB|$\end{enumerate}\end{example}\begin{example}{4}[2025][全国2卷][高三][高考][第17题]如图,在四边形$ABCD$中,$AB\parallel CD$$\angle DAB=90^\circ$$F$$CD$中点,$E$$AB$上,$EF\parallel AD$$AB=3AD$$CD=2AD$.将四边形$EFDA$沿$EF$翻折至四边形$EFD'A'$,使得面$EFD'A'$与面$EFCB$所成的二面角为$60^\circ$\begin{enumerate}    \item 证明:$A'B\parallel$平面$CD'F$    \item 求平面$BCD'$与面$EFD'A'$所成二面角的正弦值.\end{enumerate}\begin{tikzpicture}[scale=1.5, >=latex]	% 1. 定义底面固定坐标(不变)	\coordinate (A) at (-1.5,-0.5);	\coordinate (D) at (-0.7,0.3);	\coordinate (E) at (-0.3,-0.5);	\coordinate (F) at (0.5,0.3);	% 右侧固定点(不变)	\coordinate (B) at (2.5,-0.5);	\coordinate (C) at (1.7,0.3);	% 核心修改:调整 A'、D' 坐标,模拟 120° 空间翻折角	\coordinate (A') at (0.10.9);   % 120°翻折后 A 的投影	\coordinate (D') at (0.9, 1.7);   % 120°翻折后 D 的投影	% 2. 绘制不可见线与原平面残留(虚线段)	\draw[dashed, thick] (A) -- (D) -- (F) -- (E) -- (A);	\draw[dashed, thick] (F) -- (C) -- (B);	\draw[dashed, thick] (D') -- (F);	\draw[dashedthick] (D') -- (C);	% 3. 绘制可见线(实线段)	\draw[thick] (E) -- (B);	\draw[thick] (E) -- (A') -- (D') -- (B);	\draw[thick] (A') -- (B);4. 顶点标注	\node[left] at (A) {$A$};	\node[above] at (D) {$D$};	\node[below] at (E) {$E$};	\node[below right] at (F) {$F$};	\node[right] at (B) {$B$};	\node[above right] at (C) {$C$};	\node[above left] at (A') {$A'$};	\node[above] at (D') {$D'$};\end{tikzpicture}\end{example}\begin{example}{4}[2025][全国2卷][高三][高考][第18题]已知函数$f(x)=\ln(1+x)-x+\dfrac{1}{2}x^2-kx^3$,其中$0<k<\dfrac{1}{3}$\begin{enumerate}    \item 证明:$f(x)$$(0,+\infty)$存在唯一极值点和唯一零点;    \item 设$x_1,x_2$$f(x)$$(0,+\infty)$的极值点和零点.    \begin{enumerate}        \item 设函数$g(t)=f(x_1+t)-f(x_1-t)$,证明:$g(t)$$(0,x_1)$单调递减;        \item 比较$2x_1$$x_2$的大小,并证明.    \end{enumerate}\end{enumerate}\end{example}\begin{example}{4}[2025][全国2卷][高三][高考][第19题]甲、乙两人进行乒乓球练习,每个球胜者得1分,负者得0分.设每个球甲胜概率为$p\left(\dfrac{1}{2}<p<1\right)$,乙胜概率为$q$$p+q=1$,且各球的胜负相互独立.对正整数$k\ge 2$,记$P_k$为打完$k$个球后甲比乙至少多得2分的概率,$q_k$为打完$k$个球后乙比甲至少多得2分的概率.\begin{enumerate}    \item 求$P_3$$P_4$(用$p$表示);    \item 若$\dfrac{P_4-P_3}{q_4-q_3}=4$,求$p$    \item 证明:当$m\in \mathbf{N}^*$时,$P_{2m+1}-q_{2m+1}<P_{2m}-q_{2m}<P_{2m+2}-q_{2m+2}$\end{enumerate}\end{example}
